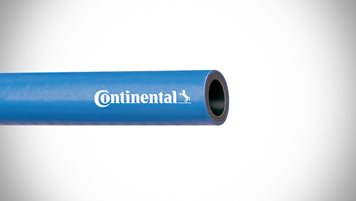

Blue Xtreme Heater Hose

Application

Designed for heater hose applications that are exposed to higher underhood temperatures and require a higher heat resistance.

Construction

Tube: Black EPDM
Reinforcement: 2-spiral aramid
Cover: Blue EPDM
Length: See table below. 6' (bag), 50' (carton), 250' (reel)

Specifications

Temperature Range: -40°F to 300°F (-40°C to 149°C)

SAE Specifications: SAE 20R3 Class D3 HT EC
Product Specifications: 580015

Branding: Continental Blue Xtreme ID,
SAE J20R3-HT-D3-EC, Made in U.S.A.

Installation: See selection of Continental connectors and clamps


WARNING

Do not use for fuel or oil transfer applications.


Construction

Tube Black EPDM
Reinforcement 2-Spiral aramid
Cover Blue EPDM
Temperature Range -40˚F to 300˚F (-40˚C to 149˚C)
SAE Specifications SAE 20R3 Class D3 HT EC
Continental Specifications 580015
Length 6' (bag), 50' (carton), 250' (reel)
Branding Heater Hose 5/8" (15.9mm) SAE J20R3-HT-D3-EC Made in U.S.A. Continental
Installation See selection of Continental Clamps and Connectors, and EZ Coil™
